In 1983, Honeywell were the first to market the ‘smart’ pressure transmitters using microprocessor technology. Over the years the measuring principle, a 3-in-1 piezoresistive sensor with internal temperature compensation, has been developed to perfection and is unprecedented accurate and stable. The successful ST3000 range, with the series 100 and 900, is succeeded by the SmartLine pressure transmitters. The transmitters for absolute pressure are available in three series:

Series

STA800 SmartLine: High-Performance pressure transmitter, advanced options
STA700 SmartLine: The standard pressure transmitter for the process industry
STA700 Basic SmartLine: Economic pressure transmitter, OEM and projects

Each series has, depending on the mounting, a so-called inline and a dual-head version.

Instrumentation

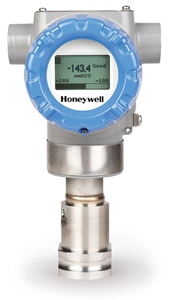

STA800 SmartLine inline absolute pressure transmitter

• STA82L, measuring range 0-1040 mbar A
• STA84L, measuring range 0-35 bar A
• STA87L, measuring range 0-210 bar A
• Process connection 1/2” NPT F or M, G 1/2
• 316L SS/hastelloy-C276

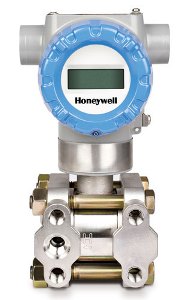

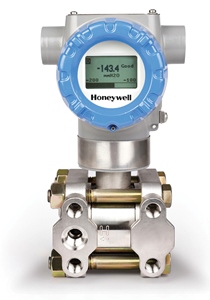

STA800 SmartLine dual-head absolute pressure transmitter

• STA822, measuring range 0-1040 mbar A
• STG840, measuring range 0-35 bar A
• Process connection IEC 61518 Oval Flange/1/2” NPT F
• 316L SS/hastelloy-C276/monel-400

Specifications for all STA800 models:
2-wire connection, 4-20mA + HART/DE/Foundation Fieldbus
Aluminium housing with polyester coating or 316 SS
Advanced graphic display
Standard accuracy 0.055%, optional up to 0.025%
Stability 0.01% per year, turndown ratio 100:1
Recommended calibration period: every 4 years
Certifications: SIL2/3/MID/ATEX/IECEX/FM/CSA/Inmetro/CU-TR/Marine (DNV/ABS/BV/KR/LR)

Downloads
Spec sheet:
STA800-Specsheet

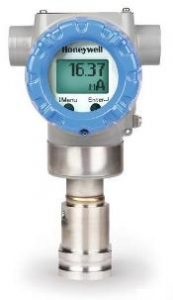

STA700 SmartLine inline absolute pressure transmitter

• STA72L, measuring range 0-1040 mbar A
• STA74L, measuring range 0-35 bar A
• STA77L, measuring range 0-210 bar A
• Process connection 1/2” NPT F or M, G 1/2
• 316L SS/hastelloy-C276

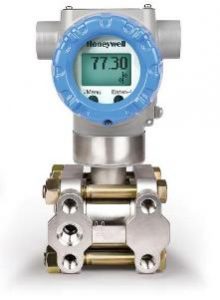

STA700 SmartLine dual-head absolute-druktransmitter

• STA722, measuring range 0-1040 mbar A
• STA740, measuring range 0-35 bar A
• Process connection IEC 61518 Oval Flange-1/2” NPT F
• 316L SS/hastelloy-C276/monel-400

Specifications for all STA700 models:
2-wire connection, 4-20mA + HART/DE/Foundation Fieldbus
Aluminium housing with polyester coating or 316 SS
Display with 2 lines
Standard accuracy 0.065%
Stability 0.02% per year, turndown ratio 100:1
Recommended calibration period: every 2 years
Certifications: SIL2/3/ATEX/IECEX/FM/CSA/Inmetro/CU-TR/Marine (DNV/ABS/BV/KR/LR)

Downloads
Spec sheet:
STA700-Specsheet

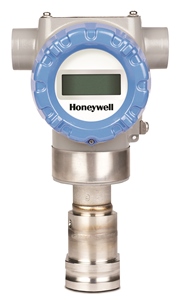

STA700 Basic SmartLine inline absolute pressure transmitter

• STA72S, measuring range 0-1040 mbar A
• STA74S, measuring range 0-35 bar A
• STA77S, measuring range 0-210 bar A
• Process connection 1/2” NPT F or M, G 1/2
• 316L SS/hastelloy-C276

STA700 Basic SmartLine dual-head absolute pressure transmitter

• STA725, measuring range 0-1040 mbar A
• STA745, measuring range 0-35 bar A
• Process connection IEC 61518 Oval Flange/1/2” NPT F
• 316L SS/hastelloy-C276/monel-400

Specifications for all STA700 basic models:
2-wire connection, 4-20mA + HART 7
Aluminium housing with polyester coating or 316 SS
Display with 2 lines
Standard accuracy 0.065%
Stability 0.025% per year, turndown ratio 100:1
Recommended calibration period: every 2 years
Certifications: SIL2/3/ATEX/IECEX/FM/CSA/Inmetro/CU-TR

Downloads
Spec sheet:
STA700 LE-Specsheet
