Magnetic flow transmitters, also known as magnetic inductive flow meters, are suitable for measuring the flow rate of (somewhat) electrically conductive liquids. They are widely used for (waste) water and dissolved chemicals. These sensors cannot be applied for oil, gases and demineralized water. The advantage of an (electro) magnetic flow transmitter (EMF) is that it has no moving parts, a straight measuring tube without restriction and that it is available in very small and very large diameters. Honeywell provides several models, with different types of converters, which can be mounted either directly on the sensor or remote.

Instrumentation

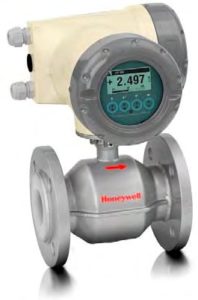

VersaFlow Mag 1000 sensor

• For water and wastewater applications
• Measuring tube/flanges carbon steel or 316 SS/316Ti
• Electrodes 316 SS, hastelloy-C4 or C22, titanium
• Lining polypropylene or hard rubber
• Diameters DN25-DN2000/1″ – 80″ (larger on request)

Downloads
Spec sheet:
VersaFlow-Magnetic-1000-sensor-specsheet
Certificates:
VF_Mag-1000-1-C-ATEX-KEMA09ATEX0170X
VF_MAG1000C-ATEX-KEMA08ATEX0072X
VF_MAG1000F-ATEX-KEMA08ATEX0071X

VersaFlow Mag 100 sensorr

Wafer model – low cost

• For water and wastewater applications
• Measuring tube 316 SS
• Electrodes hastelloy-C4
• Lining PFA
• Diameters DN10-DN150/3/8″ – 6″

Downloads
Spec sheet:
VersaFlow-Magnetic-100-sensor-specsheet

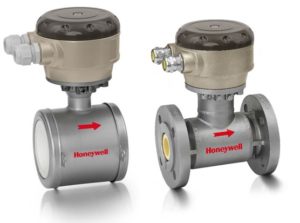

VersaFlow Mag 2000 sensor

Flanged & wafer model

• For aggressive and abrasive fluids
• Measuring tube of ceramic material
• Electrodes cermet, 316 SS/Ti, Hastelloy-C4, platinum
• Diameters DN 2.5-DN250/1/10″ – 10″

Downloads
Spec sheet:
VersaFlow-Magnetic-2000-Flanged-sensor-specsheet
VersaFlow-Magnetic-2000-Wafer-sensor-specsheet
Certificates:
VF-MAG2000C-ATEX-KEMA09ATEX0045X_1
VF-MAG2000F-ATEX-KEMA09ATEX0044 X

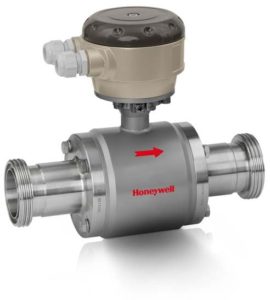

VersaFlow Mag 3000 sensor

• For sanitary/hygienic applications
• Measuring tube/flanges 304 SS
• Electrodes 316L SS/Ti, hastelloy-C4/B2, titanium, platinum, tantalum
• Lining PFA (FDA-compliant)
• Diameters DN 2.5-DN150/1/10″ – 6″

Downloads
Spec sheet:
VersaFlow-Magnetic-3000-sensor-specsheet
Certificates:
VF-MAG3000C-ATEX-KEMA09ATEX0046 X_1
VF-MAG3000F-ATEX-KEMA09ATEX0047X

VersaFlow Mag 4000 sensor

• For water, waste water and dissolved chemicals
• Measuring tube/flanges carbon steel or 304, 316L or 316Ti SS
• Electrodes 316Ti SS, hastelloy-C4, B2 or C22, titanium, platinum, tantalum
• Lining PTFE, PFA, ETFE, PU or hard rubber
• Diameters DN 2.5-DN2000/1/10″ – 80″ (larger on request)

Downloads
Spec sheet:
VersaFlow-Magnetic-4000-sensor-specsheet
Certificates:
VF-MAG4000-MID-NMI_T10374
VF_MAG4000F-ATEX-KEMA08ATEX0071X
VF_MAG4000C-ATEX-KEMA08ATEX0072X
VF_Mag4000-1-C-ATEX-KEMA09ATEX0170X

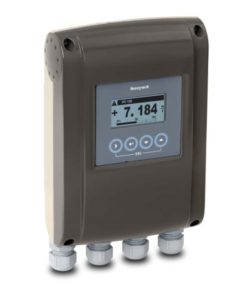

VersaFlow Mag TWM1000 converter

• Mounting on the sensor or wall mounting
• 4-20mA + HART, pulse, frequency and status outputs
• Graphic display with push buttons

Downloads
Spec sheet:
VersaFlow-Magnetic-TWM1000-converter-specsheet
Manual:
34-vf-25-16-VersaFlow-Magnetic-TWM1000-manual

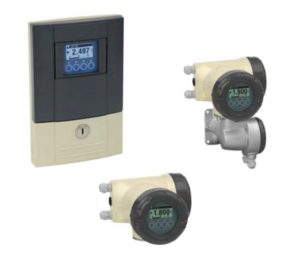

VersaFlow TWM9000 converter

• Mounting on the sensor or wall mounting
• 4-20mA + HART, pulse, frequency and status outputs
• Optional Foundation Fieldbus, PROFIBUS PA, DP or Modbus
• Graphic display with push buttons
• EX-version for explosive atmospheres

Downloads
Spec sheet:
VersaFlow-Magnetic-TWM9000-converter-specsheet
Manual:
34-VF-25-01-VersaFlow-Magnetic-TWM9000-manual
Certificates:
VF-MAG-TWM9000-MID-NMI_T10374
VF-TWM9000F-ATEX-KEMA08ATEX0070_1
