In 1983, Honeywell were the first to market the ‘smart’ pressure transmitters using microprocessor technology. Over the years the measuring principle, a 3-in-1 piezoresistive sensor with internal temperature compensation, has been developed to perfection and is unprecedented accurate and stable. The successful ST3000 range, with the series 100 and 900, was succeeded by the SmartLine pressure transmitters. The transmitters for manometer pressure (gauge pressure) are divided into three series:

Series

STG800 SmartLine: High-Performance pressure transmitter, advanced options
STG700 SmartLine: The standard pressure transmitter for the process industry
STG700 Basic SmartLine: Economic pressure transmitter, OEM and projects

Each series has, depending on the mounting, a so-called inline and a dual-head version.

Instrumentation

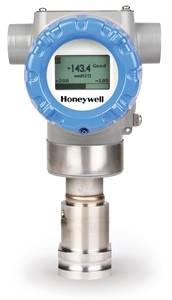

STG800 SmartLine inline pressure transmitter

• STG83L, measuring range 0-3.5 bar
• STG84L, measuring range 0-35 bar
• STG87L, measuring range 0-210 bar
• STG88L, measuring range 0-420 bar
• STG89L, measuring range 0-690 bar
• Process connection 1/2″ NPT F or M, G 1/2
• Material 316L SS/hastelloy-C276

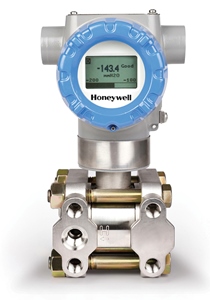

STG800 SmartLine dual-head pressure transmitter

• STG830, measuring range 0-3.5 bar
• STG840, measuring range 0-35 bar
• STG870, measuring range 0-210 bar
• Process connection IEC 61518 Oval Flange/1/2″ NPT F
• Material 316L SS/hastelloy-C276/monel-400

Specifications for all ST800 models:
2-wire connection, 4-20mA + HART/DE/Foundation Fieldbus
Aluminium housing with polyester coating or 316 SS
Advanced graphics display
Standard accuracy 0.055%, optional up to 0.025%
Stability 0.01% per year, turndown ratio 100:1
Recommended calibration period: every 4 years
Certifications: SIL2/3/MID/ATEX/IECEX/FM/CSA/Inmetro/CU-TR/Marine (DNV/ABS/BV/KR/LR)

Downloads
Spec sheet:
STG800-Specsheet

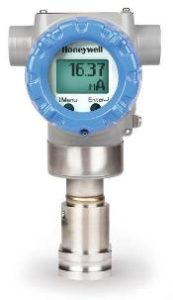

STG700 SmartLine inline pressure transmitter

• STG73L, measuring range 0-3.5 bar
• STG74L, measuring range 0-35 bar
• STG77L, measuring range 0-210 bar
• STG78L, measuring range 0-420 bar
• STG79L, measuring range 0-690 bar
• Process connection 1/2″ NPT F or M, G 1/2
• 316L SS/hastelloy-C276

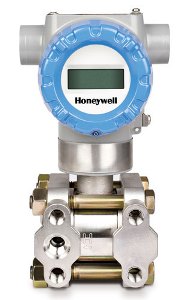

STG700 SmartLine dual-head pressure transmitter

• STG730, measuring range 0-3.5 bar
• STG740, measuring range 0-35 bar
• STG770, measuring range 0-210 bar
• Process connection IEC 61518 Oval Flange/1/2″ NPT F
• 316L SS/hastelloy-C276/monel-400

Specifications for all ST700 models:
2-wire connection, 4-20mA + Hart/DE/Foundation Fieldbus
Aluminium housing with polyester coating or 316 SS
Display with 2 lines
Standard accuracy 0.065%
Stability 0.02% per year, turndown ratio 100:1
Recommended calibration period: every 2 years
Certifications: SIL2/3/ATEX/IECEX/FM/CSA/Inmetro/CU-TR/Marine (DNV/ABS/BV/KR/LR)

Downloads
Spec sheet:
34-ST-03-102-STG700-Specsheet

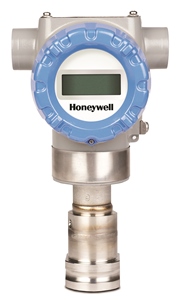

STG700 Basic SmartLine inline pressure transmitter

• STG73S, measuring range 0-3.5 bar
• STG74S, measuring range 0-35 bar
• STG77S, measuring range 0-210 bar
• STG78S, measuring range 0-420 bar
• STG79S, measuring range 0-690 bar
• Process connection 1/2″ NPT F or M, G 1/2
• Material 316L SS/hastelloy-C276

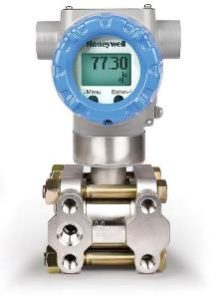

STG700 Basic SmartLine dual-head pressure transmitter

• STG735, measuring range 0-3.5 bar
• STG745, measuring range 0-35 bar
• STG775, measuring range 0-210 bar
• Process connection IEC 61518 Oval Flange/1/2″ NPT F
• Material 316L SS/hastelloy-C276/monel-400

Specifications for all ST700 basic models:
2-wire connection, 4-20mA + HART 7
Aluminium housing with polyester coating or 316 SS
Display with 2 lines
Standard accuracy 0.065%
Stability 0.025% per year, turndown ratio 100:1
Recommended calibration period: every 2 years
Certifications: SIL2/3/ATEX/IECEX/FM/CSA/Inmetro/CU-TR

Downloads
Spec sheet:
Catalogue/Specification Sheet
