Honeywell manufactures a very extensive package of process controllers. The single and dual-loop controllers are microprocessor-based and modular built. They are standard equipped with different control algorithms, including on-off, PID-A, PID-B and TPSC. Thermocouple health alarms, Accutune III automatic PID-tuning and Fuzzy Logic overshoot suppression are among the possibilities. Remote setpoints, digital inputs, alarm relays and transmitter power are a few of the numerous other options.

A series setpoint programs, for example for annealing furnaces that have to run a temperature program, completes the portfolio.

Instrumentation

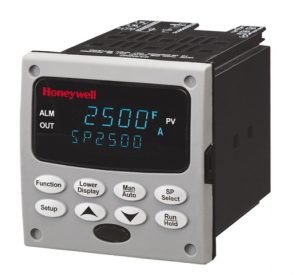

UDC2500 Digital controller

• ¼ DIN regulator (96 x 96 mm)
• Universal analog + high level input
• 2 digital inputs
• Remote setpoint
• Optional setpoint programming
• Up to 5 analog and digital outputs
• Ethernet and Modbus communication
• Configuration optional via infra-red port
• Optional transmitter power

Downloads
Spec sheet:
51-52-03-36-UDC2500-specsheet
Manual:
57-77-25-18-DCP250-manual

UDC3200 Digital controller

• ¼ DIN regulator (96 x 96 mm)
• 2 universal analog inputs + high level inputs
• 2 digital inputs
• Remote setpoint
• Optional setpoint programming
• Mathematical functions
• Up to 5 analog and digital outputs
• Ethernet and Modbus communication
• Configuration optional via infra-red port
• Optional transmitter power

Downloads
Spec sheet:
51-52-03-39-UDC3200-specsheet
Manual:
51-52-25-119-UDC3200-manual

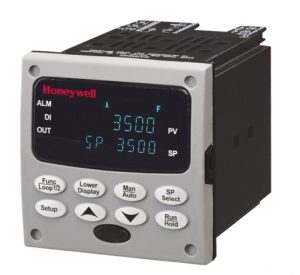

UDC3500 Digital controller

• ¼ DIN regulator (96 x 96 mm)
• 3 universal analog inputs + high level inputs
• 4 digital inputs
• Remote setpoint
• Optional setpoint programming
• Mathematical functions
• Optional transmitter power
• Dual-loop or cascade control
• Up to 5 analog and digital outputs
• Ethernet and Modbus communication
• Configuration optional via infra-red port

Downloads
Spec sheet:
51-52-03-40-UDC3500-specsheet
Manual:
51-52-25-120-UDC3500-manual

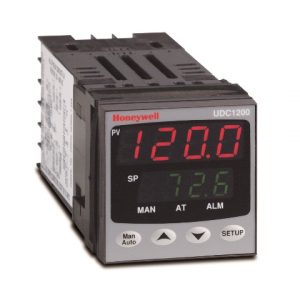

UDC1200 Digital controller

• 1/16 DIN controller (48 x 48 mm)
• Universal input (thermocouples, Pt100, mA, V)
• Output mA, relay or SSR
• Optional alarm relay
• Optional RS485 communication

Downloads
Spec sheet:
51-52-03-35-UDC1200-specsheet
Manual:
51-52-25-122-UDC1200-manual

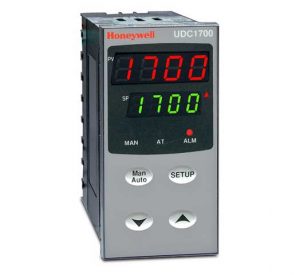

UDC1700 Digital controller

• ⅛ DIN controller (96 x 48 mm)
• Universal input (thermocouples, Pt100, mA, V)
• Output mA, relay or SSR
• Optional alarm relay
• Optional RS485 communication

Downloads
Spec sheet:
51-52-03-35-UDC1700-specsheet
Manual:
51-52-25-122-UDC1700-manual

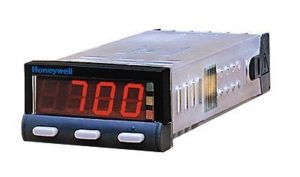

UDC700 Digital controller

• Compact controller
• 1/32 DIN (48 x 24 mm)
• Universal input (thermocouples, Pt100, mA, V)
• Output relay or SSR
• Optional alarm relay

Downloads
Spec sheet:
51-52-03-28-UDC700-specsheet
Manual:
EN1I-6226-UDC700-manual

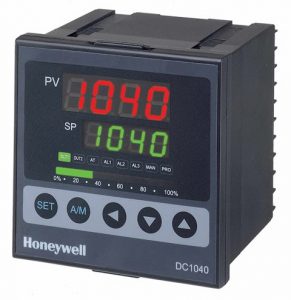

DC1000 Series digital controllers

• General purpose controllers
• DC1010: 1/16 DIN 48 x 48 mm
• DC1020: 1/8 DIN 48 x 96 mm
• DC1030: 3/16 DIN 72 x 72 mm
• DC1040: ¼ DIN 96 x 96 mm
• 1 universal analog input
• 2 control outputs 4-20mA, relay or SSR
• Alarm relay
• Optional setpoint programming

Downloads
Spec sheet:
51-52-03-33-DC1000-specsheet
Manual:
51-52-25-113-DC1000-manual

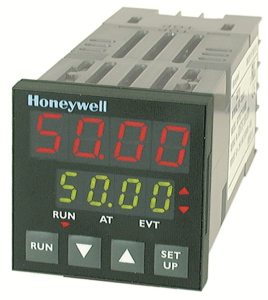

DCP50 Setpoint programmer

• Program controller/setpoint programmer
• 1/16 DIN controller 48 x 48 mm
• Up to 4 programs with 16 segments
• 1 universal input
• 1 or 2 control outputs
• 1 or 2 alarm relays
• 1 digital input (remote run/hold)

Downloads
Spec sheet:
57-77-03-17-DCP50-specsheet

DCP250 Setpoint programmer

• Program controller/setpoint programmer
• ¼ DIN controller 96 x 96 mm
• Up to 64 programs with 256 segments
• Data logging function
• 2 universal inputs
• 1 or 2 control outputs
• 1 or 2 alarm relays
• 1 digital input (remote run/hold)
• Modbus TCP and RTU

Downloads
Spec sheet:
57-77-03-18-DCP250-specsheet
Manual:
57-77-25-18-DCP250-manual

DCP300 Setpoint programmer

• ¼ DIN setpoint programmer 96 x 96 mm
• Up to 19 programs with 30 segments
• 1 or 2 universal analog inputs
• Up to 12 digital inputs
• Up to 3 control outputs, mA, relay, SSR or Triac
• Optional transmitter power

Downloads
Spec sheet:
57-77-03-15-DCP300-specsheet
Manual:
EN1I-6197-DCP301-manual
EN1I-6215-DCP302-manual

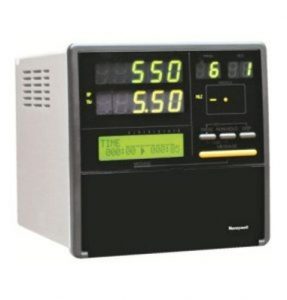

DCP551 Setpoint programmer

• ¼ DIN setpoint programmer 96 x 96 mm
• Up to 99 programs with 99 segments
• 1 universal analog input
• Up to 16 digital outputs
• Up to 3 outputs mA, relay, SSR or Triac
• Optional transmitter power

Downloads
Spec sheet:
57-77-03-16-DCP551-specsheet
Manual:
EN1I-6186-DCP551-manual

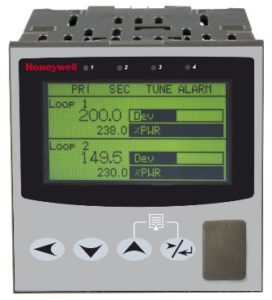

DCP552 Setpoint programmer

• ¼ DIN setpoint programmer 96 x 96 mm
• Up to 99 programs with 99 segments
• Dual-loop control
• 2 universal analog inputs
• Up to 16 digital outputs
• Up to 3 outputs mA, relay, SSR or Triac
• Optional transmitter power

Downloads
Spec sheet:
57-77-03-13-DCP552-specsheet
Manual:
EN1I-6187-DCP552-manual
