Honeywell has been developing high-quality process recorders since the 60’s of the last century. They are used to store process data for a wide variety of applications and in the toughest conditions. The paperless digital recorders fully meet the FDA Directive 21CFR Part 11 for use in the food industry and AMS2750 for data storage of annealing furnaces for aircraft parts. To the brim filled with options such as a remote viewer to monitor the recorder via a web browser, or an e-mail function that sends a message in case of an alarm value or event. Such options can be activated by the customer, by means of a Firmware credit system. The GR series is now the 7th generation of paperless writers and has become the most comprehensive and user-friendly on the market.

For traditional markets, Honeywell has three models of circular chart recorders that write the data on a 24-hours or 7-days chart.

Instrumentation

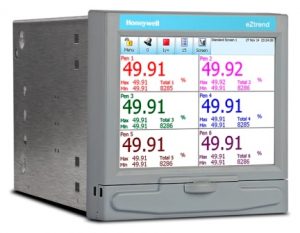

eZtrend GR

• 5.7″ touchscreen 320 × 240 pixels
• Up to 12 universal analog inputs
• Internal memory maximum 2 GB
• Maximum logging speed 100 msec
• Optional digital input and output charts

Downloads
Spec sheet:
43-TV-03-18-eZtrend-GR-specsheet
Manual:
43-TV-25-41-GR-recorders-manual

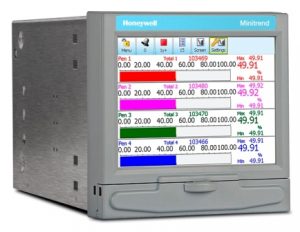

Minitrend GR

• 5.7″ high resolution touchscreen 640 × 480 pixels
• Up to 16 universal analog inputs
• Internal memory maximum 4 GB
• Maximum logging speed 20 msec
• Optional digital input and output charts
• Optional SD card

Downloads
Spec sheet:
43-TV-03-17-Minitrend-GR-specsheet
Manual:
43-TV-25-41-Minitrend-recorders-manual

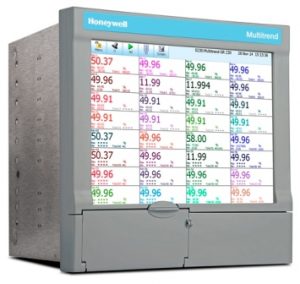

Multitrend GR

• 12.1″ high resolution touchscreen 1024 × 768 pixels
• Up to 48 universal analog inputs
• Internal memory maximum 4 GB
• Maximum logging speed 20 msec
• Optional digital input and output charts
• Optional SD card

Downloads
Spec sheet:
43-TV-03-16-Multitrend-GR-specsheet
Manual:
43-TV-25-41-Multitrend-recorders-manual

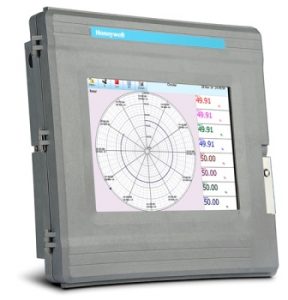

DR Graphic recorder

• Digital circular chart recorder
• 1″ high resolution touchscreen 1024 × 768 pixels
• Up to 16 analog inputs
• Internal memory maximum 4 GB
• Maximum logging speed 20 msec
• Optional digital input and output charts
• Optional SD card

Downloads
Spec sheet:
43-TV-03-19-DR-recorder-specsheet
Manual:
43-TV-25-41-DR-recorders-manual

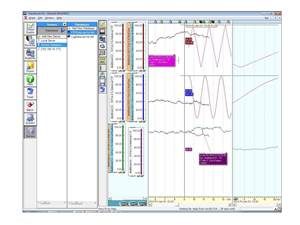

TrendManager Pro software

• Importing, analysing and archiving data from recorders
• Configuring recorders through network
• Realtime communication
• Suitable for Windows 10, 8, 7
• Encrypted database

Downloads
Spec sheet:
43-TV-03-09-TrendManager-Suite-specsheet
Manual:
43-TV-25-11-TrendManager-Suite-manual

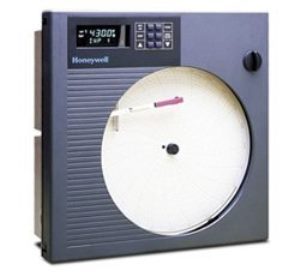

DR4300

• 10″/250 mm circular chart recorder
• 1 or 2 pen recorder
• Digital display
• Universal analog input
• Optional PID control
• Alarm relay
• Charts with 24 hours and/or 7 days

Downloads
Spec sheet:
44-01-03-04-DR4300-specsheet
Manual:
44-01-25-14-DR4300-manual

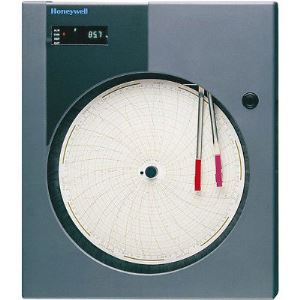

DR4500 Classic

• 12″/300 mm circular chart recorder
• 1 or 2 pen recorder
• Digital display
• Universal analog input
• Optional PID control
• Alarm relay
• Charts with 24 hours and/or 7 days

Downloads
Spec sheet:
44-45-03-15-DR4500A-Classic-specsheet
Manual:
44-45-25-35-DR4500A-Classic-manual

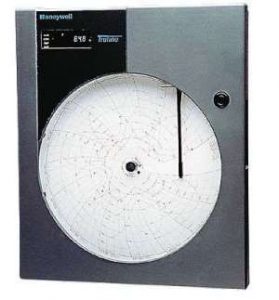

DR4500 Truline

• 12″/300 mm circular chart recorder
• Thermal pen recorder
• Up to 4 channels
• Digital display
• Universal analog ingang
• Optional PID control
• Alarm relay
• The recorder prints the charts on thermal paper

Downloads
Spec sheet:
44-45-03-14-DR4500A-Truline-specsheet
Manual:
44-45-25-30-DR4500A-Truline-manual
